Características

Especificações

Condition: New

Application: Winding Yarns

Automatic Grade: Semi-automatic

Production Capacity: HIGH SPEED

Memory Capacity: Request

Voltage: 380v/220v

Power: 90W/spindle

Dimension(L*W*H): 2300*1100*1500mm

Weight: 100-500KGS

Warranty: 12 Month

After-sales Service Provided: Engineers available to service machinery overseas

Certificação: ISO, CE

Material Capabilities: Yarn

Machine Type: Winding Machine

Product: Chenille

Name: FEIHU cone yarn winding machine

Informação básica

Certificação: ISO, CE

Condições de Pagamento e Envio

Packaging Details: standared exporting packages

Supply Ability: 10 Piece/Pieces per Day

Descrição de produto

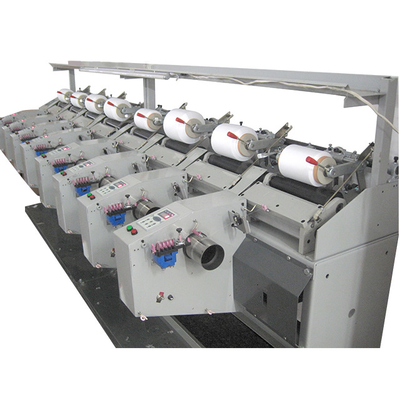

FEIHU HANK TO CONE WINDER MACHINE

We have all kinds of yarns for winder machinery use.

It suitable for flat tube or cone tube.

Product name	Cotton Hank To Cone Winder Machine
Number of spindles	24(6 spindles/group)
Spindle gauge	360mm
Layout	Single side or double sides
Power Supply	220V 50HZ 3phase(Optional)
Max.package diameter	250mm
Take-up traverse	152mm
spindle power	120w
Take-up speed	Max. 1000 meters/min
Max.yarn diameter	≤260mm
Friction roller specification	flat bobbin Φ 80mm×220mm or cone Φ 80mm×220mm taper 3.5°
Driving	Individual
Auto Stop Device	Motion sensor
Electronic Anti-Stack	Inverter control
Auto-waxing device	Optional
Cleaner device	Optional
Electronic Yarn Clearer	Optional
Air Splicer	Optional
Blower cleaner	Optional
Lighting System	optional
Dimensions	L 1454 x W 690 x H 1700 mm ( 6 spindles)
Weight	205kg/group
